产品名称：单级FCW系列蜗轮减速机
产品类别：蜗轮蜗杆减速机系列
产品型号：FCW系列
|

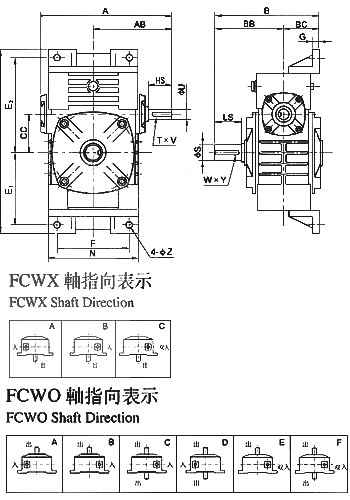

Size |
Ratio |
A |
AB |
B |
BB |
BC |
CC |
E1 |
E2 |
F |
M |
N |
|
40 |
1/5
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60 |
152 |
90 |
123 |
78 |
45 |
40 |
72 |
97 |
70 |
195 |
96 |
|
50 |
175 |
105 |
145 |
95 |
50 |
50 |
90 |
110 |
90 |
225 |
115 |
|
60 |
195 |
120 |
165 |
110 |
55 |
60 |
102 |
129 |
100 |
257 |
126 |
|
70 |
234 |
140 |
195 |
130 |
65 |
70 |
120 |
155 |
120 |
305 |
155 |
|
80 |
264 |
160 |
210 |
140 |
70 |
80 |
140 |
180 |
140 |
350 |
174 |
|
100 |
300 |
178 |
253 |
163 |
90 |
100 |
165 |
215 |
190 |
410 |
224 |
|
120 |
385 |
230 |
285 |
185 |
100 |
120 |
195 |
255 |
220 |
495 |
264 |
|
135 |
435 |
260 |
320 |
210 |
110 |
135 |
230 |
285 |
260 |
560 |
304 |
|
155 |
494 |
300 |
392 |
252 |
140 |
155 |
250 |
305 |
280 |
605 |
330 |
|
175 |
548 |
325 |
412 |
262 |
150 |
175 |
273 |
348 |
320 |
675 |
370 |
|
200 |
594 |
350 |
480 |
305 |
175 |
200 |
305 |
390 |
370 |
749 |
424 |
|
Size |
G |
Z |
Input Shaft |
Output Shaft |
Weight
Kg |
|
HS |
U |
T×V |
LS |
S |
W×Y |
|
40 |
10 |
9 |
25 |
12 |
4×2.5 |
28 |
14 |
5×3 |
4.2 |
|
50 |
14 |
11 |
30 |
12 |
4×2.5 |
40 |
17 |
5×3 |
6.5 |
|
60 |
15 |
11 |
40 |
15 |
5×3 |
50 |
22 |
7×4 |
9 |
|
70 |
20 |
15 |
40 |
18 |
5×3 |
60 |
28 |
7×4 |
14 |
|
80 |
20 |
15 |
50 |
22 |
7×4 |
65 |
32 |
10×4.5 |
21 |
|
100 |
20 |
15 |
50 |
25 |
7×4 |
75 |
38 |
10×4.5 |
33 |
|
120 |
25 |
18 |
65 |
30 |
7×4 |
85 |
45 |
12×4.5 |
51 |
|
135 |
30 |
18 |
75 |
35 |
10×4.5 |
95 |
55 |
15×5 |
75 |
|
155 |
35 |
20 |
85 |
40 |
10×4.5 |
110 |
60 |
15×5 |
115 |
|
175 |
40 |
20 |
85 |
45 |
12×4.5 |
110 |
65 |
18×6 |
152 |
|
200 |
42 |
22 |
95 |
50 |
12×4.5 |
125 |
70 |
20×7 |
226 | |
|
