| WPA蜗轮减速机 |
|
WPA40、WPA50、WPA60、WPA70、WPA80、WPA100、WPA120、WPA135、WPA155、WPA175、WPA200、WPA250、型蜗轮蜗杆减速器主要尺寸

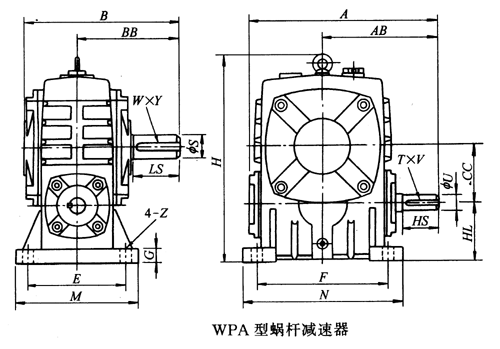

WPA型蜗杆减速器主要尺寸 /mm
|
规格 |
减速比 |
A |
AB |
B |
BB |
CC |
H |
H1 |
LL |
HL |
M |
N |
E |
F |
G |
Z |
输入轴 |
输出轴 |
质量m/kg |
|
HS |
U |
T×V |
LS |
S |
W×Y |
|
40 |
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60 |
143 |
87 |
114 |
74 |
40 |
138 |
141 |
60 |
40 |
90 |
100 |
70 |
80 |
13 |
10 |
25 |
12 |
4×2.5 |
28 |
14 |
5×3 |
4 |
|
50 |
175 |
107 |
150 |
97 |
50 |
176 |
180 |
80 |
50 |
120 |
140 |
95 |
110 |
15 |
12 |
30 |
12 |
4×2.5 |
40 |
17 |
5×3 |
7 |
|
60 |
198 |
122 |
168 |
112 |
60 |
204 |
207 |
90 |
60 |
130 |
150 |
105 |
120 |
20 |
12 |
40 |
15 |
5×3 |
50 |
22 |
6×3.5 |
10 |
|
70 |
231 |
140 |
194 |
131 |
70 |
236 |
238 |
105 |
70 |
150 |
190 |
115 |
150 |
20 |
15 |
40 |
18 |
6×3.5 |
60 |
28 |
8×4 |
15 |
|
80 |
261 |
160 |
214 |
142 |
80 |
268 |
273 |
120 |
80 |
170 |
220 |
135 |
180 |
20 |
15 |
50 |
22 |
6×3.5 |
65 |
32 |
10×5 |
20 |
|
100 |
322 |
190 |
254 |
169 |
100 |
336 |
334 |
150 |
100 |
190 |
270 |
155 |
220 |
25 |
15 |
50 |
25 |
8×4 |
75 |
38 |
10×5 |
35 |
|
120 |
381 |
229 |
282 |
190 |
120 |
430 |
423 |
180 |
120 |
230 |
320 |
180 |
260 |
30 |
18 |
65 |
30 |
8×4 |
85 |
45 |
14×5.5 |
60 |
|
135 |
433 |
260 |
317 |
210 |
135 |
480 |
482 |
215 |
135 |
250 |
350 |
200 |
290 |
30 |
18 |
75 |
35 |
10×5 |
95 |
55 |
16×6 |
80 |
|
155 |
504 |
302 |
382 |
252 |
155 |
531 |
541 |
235 |
135 |
275 |
390 |
220 |
320 |
35 |
21 |
85 |
40 |
12×5 |
110 |
60 |
18×7 |
110 |
|
175 |
545 |
325 |
402 |
262 |
175 |
600 |
600 |
260 |
160 |
310 |
430 |
250 |
350 |
40 |
21 |
85 |
45 |
14×5.5 |
110 |
65 |
18×7 |
150 |
|
200 |
587 |
350 |
467 |
305 |
200 |
666 |
677 |
290 |
175 |
360 |
480 |
290 |
390 |
40 |
24 |
95 |
50 |
14×5.5 |
125 |
70 |
20×7.5 |
215 |
|
250 |
705 |
420 |
552 |
360 |
250 |
800 |
824 |
350 |
200 |
460 |
560 |
380 |
480 |
45 |
28 |
110 |
60 |
18×7 |
155 |
90 |
25×9 |
360 | |
